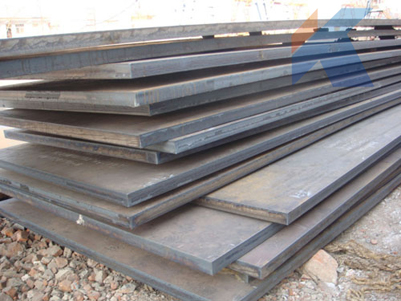

ASTM A299 material is a manganese-silicon carbon steel plate for use in welder boilers and other pressure vessels. ASTM A299 pressure vessel plates under this specification are produced in two grades. The steel shall be killed and shall conform to the fine austenitic grain size requirement. Tension test shall be made to conform to the requirements. There are two grades A299 Grade A, andA299年级B.根据ASTM A299规范。
Thickness: 3-150mm
Width: 1220-4200mm
Length: 5000-18000mm
| 年级 | 该组合物（重量，热分析，％） | ||||
| 碳，最大。 | 硅 | 锰 | 磷，最大 | 硫，最大。 | |
| A299 GR.A. | 0.28 | 0.15-0.40 | 0.90-1.50 | 0.025 | 0.025 |
| A299 GR.B. | 0.30 | 0.15-0.40 | 0.90-1.50 | 0.025 | 0.025 |
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
ASTM A299 Steel Mechanical Property:
| 素材 | 屈服强度分钟。MPA [ksi] | 屈服强度分钟。MPA [ksi] | 抗拉强度 | 8英寸伸长率。 | 2英寸伸长率。 |
| 厚度≤25mm | 厚度> 25mm. | MPA [ksi] | 分钟，％ | 分钟，％ | |
| A299 GR.A. | 290 [42] | 275 [40] | 515-655 [75-95] | 16. | 19. |
| A299 GR.B. | 325 [47] | 310 [45] | 550-690 [80-100] | 16. | 19. |
Additional Service:
Chemical composition test, additional tension test, Charpy V-Notch Impact Test, Drop Weight Test, High- Temperature Tension Test, Ultrasonic Examination, Magnetic particle examination, size and dimension examination
Shanghai Katalor Enterprise, a ASTM A299 pressure vessel plates supplier, is located in Pudong district of Shanghai city. It is only 30 minutes from Pudong International airport to our company. If you need ASTM A299 pressure vessel plates,ASTM A299 GR.A.碳钢板，我们真诚地邀请您参观工厂。如果您告诉我们您的日程安排，我们将在机场接您
.
